| Code | BHNGBU003 |
|---|---|
| Water Source Type | Borehole |
| Inspecting Agency | Puntland_PWDA |
| Inspection Date | Oct. 26, 2019 |
| District | Burtinle |
| Settlement Name | Burtinle |
| Settlement Distance (km) | 0.2 |
| Establishing Agency | WV - WV - World Vision |
| Establishing Date | 25-06-12 |
| Source Name | Hanad BH2 |
| Latitude | 7.6405 |
| Longitude | 47.8135 |
| Sources Cluster | 2 |

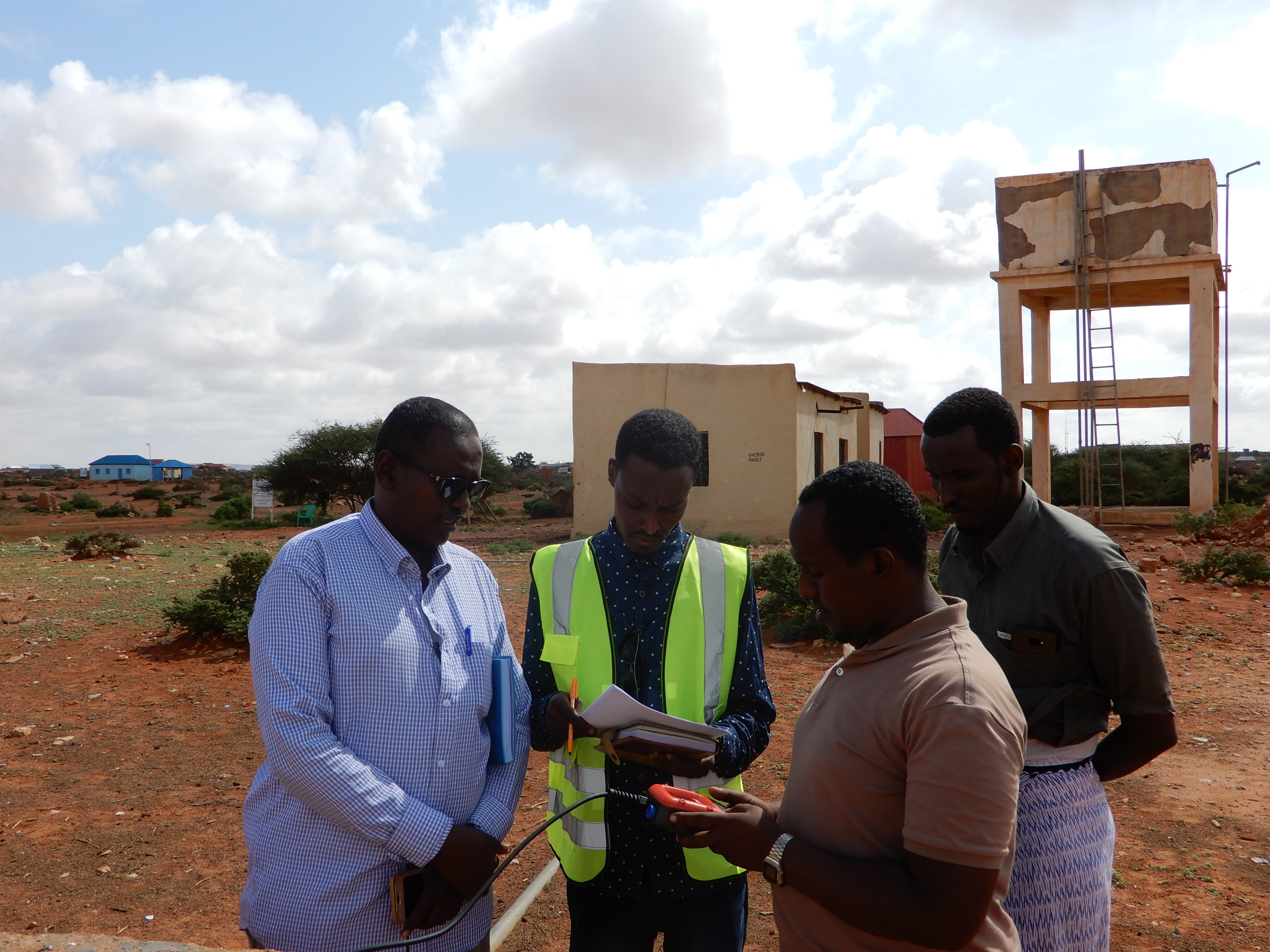

| Water Source Photo |  |
| Users | Rural Urban |
| Permanent? | Yes |
| Months Used | None |
| Functioning? | Yes |
| Non Function Reason | None |
| No of Humans | None |
| No of Camels | 15000 |
| No of Cattle | 500 |
| No of Shoats | 150000 |
| Irrigation Area (ha) | None |
| Source Protected? | None |
| Borehole Depth (m) | 407.0 |
| Wellcasing Type | None |
| Wellcasing Size (inches) | None |
| Borehole SWL (m) | None |
| Borehole Operating Yield (m3/hr) | 10.0 |
| Borehole Operating Hours (hrs/day) | None |
| Borehole Operating Drawn (m) | None |
| Borehole Recovery Time (hr) | None |
| Reservoir Type | Concrete/Masonry tank |
| Reservoir Capacity (m3) | 350.0 |
| Pipeline Type | PVC |
| Pipeline Length (m) | 3700.0 |
| HouseHold Connections | 2500 |
| Water Point Kiosks | None |
| Troughs | 2 |
| Source Emergency? | Yes |
| No of Trucks | 7 |
| Truck Capacity (m3/hr) | 8.0 |
| Pump Type | Submersible Pump |
| Pump Model | Grundfos |
| Pump Capacity (m3/hr) | None |
| Pump Level (m) | None |
| Power Source | Generator |
| Generator Type | GP100 |
| Generator Capacity (kVA/kWh) | 100.0 |
| Solar Type | None |
| Solar Capacity (kVA/kWh) | None |
| Supply Condition | Good |
| Supply System Condition Notes | None |
| Physical Water Issues | No |
| Physical Problem Reason | None |
| Temperature (°C) | 34.8 |
| pH | None |
| Electrical Conductivity (µS/cm) | 2410.0 |
| Total Dissolved Solids (mg/l) | 1209.0 |
| Water Sample Code | No Document |
| Management Type | Private-Public-Partnership |
| WSC | None |
| WSC Established Date | None |
| WSC Male | None |
| WSC Female | None |
| Humans Charged for Water? | Yes |
| Cost Of Water for Humans (USD) | 0.03 |
| Water Charged for Animals? | Yes |
| Cost Of Water for Animals (USD) | None |
| Last Intervention Agency | IRC - International Rescue Committee |
| Last Intervention Description | Repair Submersible Pump and GI PIPES |
| Last Intervention Date | 2018-05-26 |
| Proposed Intervention Description | Solar power, Observation pipe and monitoring |
| Additional Notes | None |
| Metadata Tag | Strategic Water Sources Survey – WSS_NAT |
| History | History BHNGBU003 |
×
![]()
