| Code | BHSNCR077 |
|---|---|
| Water Source Type | Borehole |
| Inspecting Agency | Somaliland_MoWRD |
| Inspection Date | Oct. 24, 2019 |
| District | Ceerigaabo |
| Settlement Name | CEELBUH |
| Settlement Distance (km) | 0.1 |
| Establishing Agency | Manhal Relief Organization |
| Establishing Date | 15-06-09 |
| Source Name | Ceelbuh BH3 |
| Latitude | 10.2249 |
| Longitude | 48.312 |
| Sources Cluster | 0 |

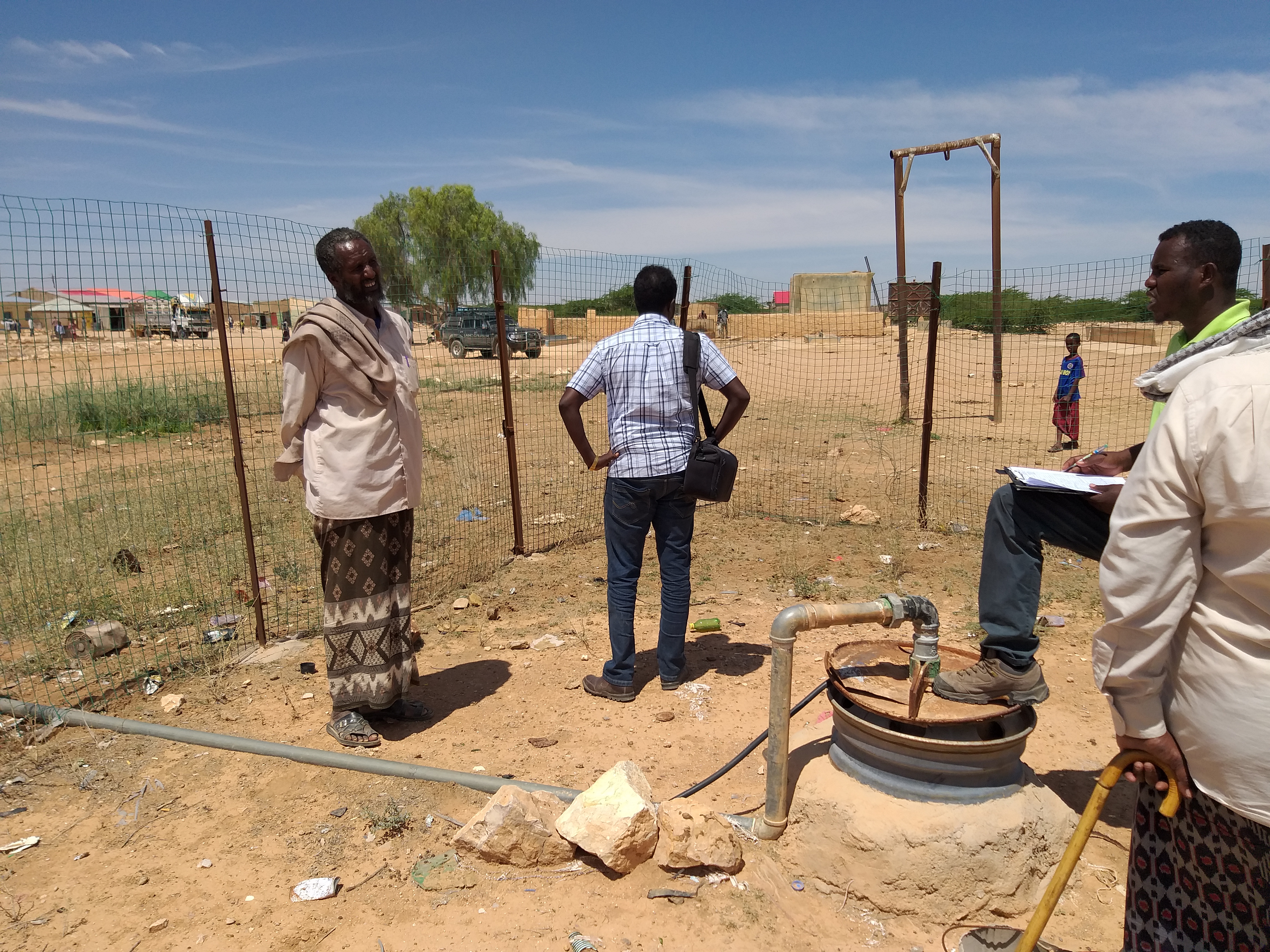

| Water Source Photo |  |
| Users | Urban |
| Permanent? | Yes |
| Months Used | None |
| Functioning? | Yes |
| Non Function Reason | None |
| No of Humans | None |
| No of Camels | None |
| No of Cattle | None |
| No of Shoats | None |
| Irrigation Area (ha) | None |
| Source Protected? | None |
| Borehole Depth (m) | 240.0 |
| Wellcasing Type | PVC |
| Wellcasing Size (inches) | 8.0 |
| Borehole SWL (m) | 42.0 |
| Borehole Operating Yield (m3/hr) | 8.0 |
| Borehole Operating Hours (hrs/day) | 9.0 |
| Borehole Operating Drawn (m) | 36.0 |
| Borehole Recovery Time (hr) | 1.0 |
| Reservoir Type | Concrete/Masonry tank |
| Reservoir Capacity (m3) | 20.0 |
| Pipeline Type | PVC |
| Pipeline Length (m) | 1000.0 |
| HouseHold Connections | 0 |
| Water Point Kiosks | 3 |
| Troughs | 3 |
| Source Emergency? | Yes |
| No of Trucks | 8 |
| Truck Capacity (m3/hr) | 8.0 |
| Pump Type | Submersible Pump |
| Pump Model | Grundfos |
| Pump Capacity (m3/hr) | 8.0 |
| Pump Level (m) | 234.0 |
| Power Source | Generator |
| Generator Type | Perkins |
| Generator Capacity (kVA/kWh) | 60.0 |
| Solar Type | None |
| Solar Capacity (kVA/kWh) | None |
| Supply Condition | Good |
| Supply System Condition Notes | Good |
| Physical Water Issues | No |
| Physical Problem Reason | None |
| Temperature (°C) | 28.2 |
| pH | 7.7 |
| Electrical Conductivity (µS/cm) | 910.0 |
| Total Dissolved Solids (mg/l) | 631.0 |
| Water Sample Code | No Document |
| Management Type | Utility/Local Authority |
| WSC | None |
| WSC Established Date | None |
| WSC Male | None |
| WSC Female | None |
| Humans Charged for Water? | Yes |
| Cost Of Water for Humans (USD) | 0.1 |
| Water Charged for Animals? | Yes |
| Cost Of Water for Animals (USD) | None |
| Last Intervention Agency | None |
| Last Intervention Description | None |
| Last Intervention Date | None |
| Proposed Intervention Description | We proposed replaced pump and risen pipeline solar system caretaker room water tank generator |
| Additional Notes | None |
| Metadata Tag | Strategic Water Sources Survey – WSS_NAT |
| History | History BHSNCR077 |
×
![]()
